ELECTRONIC GRAVURE ENGRAVER
Electronic Gravure Engraver
The Electronic Gravure Engraver is designed for high-precision gravure cylinder making and is widely used in plastic packaging, trademarks, decorative printing, transfer printing, embossing, and related applications.
Engineered to meet modern production requirements, the Electronic Gravure Engraver eliminates the limitations of traditional manual cylinder making such as low precision, poor consistency and high dependency on operator skill. The result is significantly higher production efficiency, with richer ink density, improved tonal gradation, and superior image clarity, ensuring consistent and repeatable print quality.
The Electronic Gravure Master incorporates advanced electronic control systems and intelligent software architecture. All critical mechanical transmission components are driven by full servo control, ensuring exceptional engraving accuracy, long-term operational stability, and smooth performance.
Designed with the operator in mind, the system offers simple operation, intuitive control, and high reliability, making it an ideal solution for both high-volume industrial production and precision-focused applications.
Starting from ₹ 35,00,000*
Features

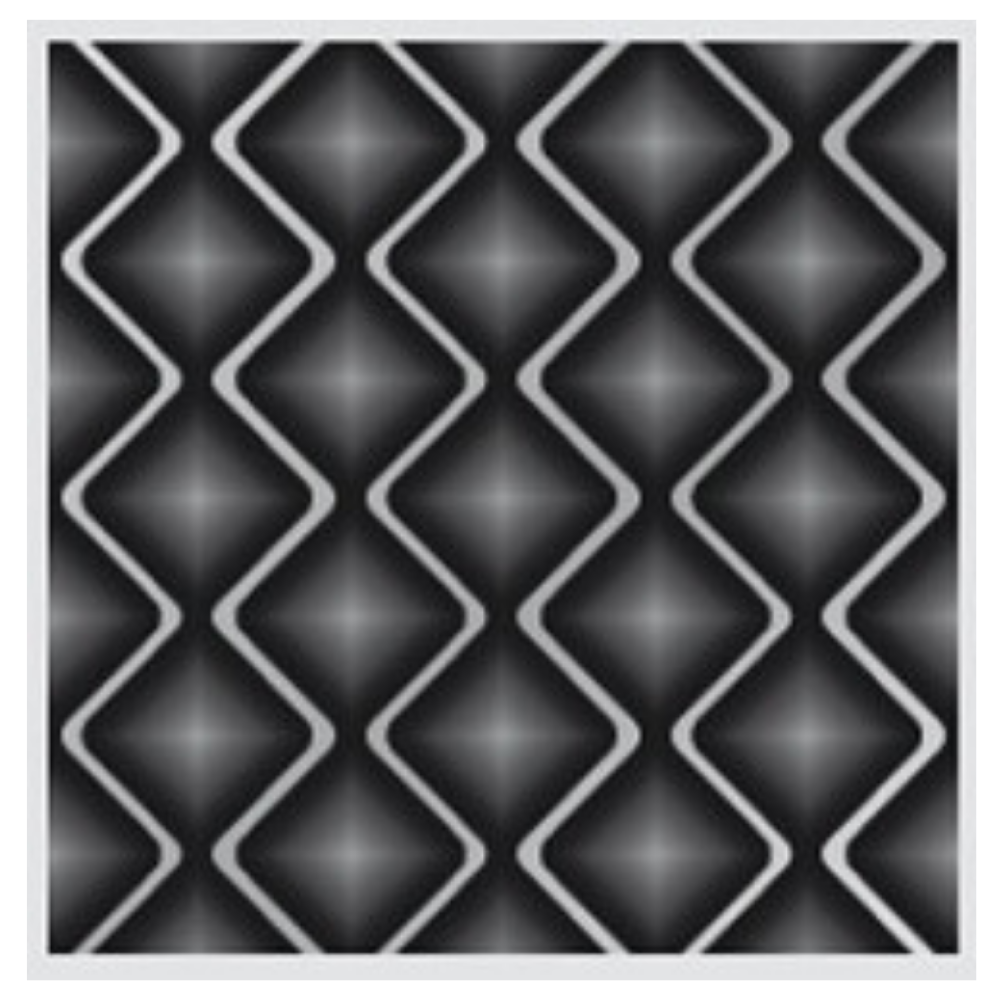

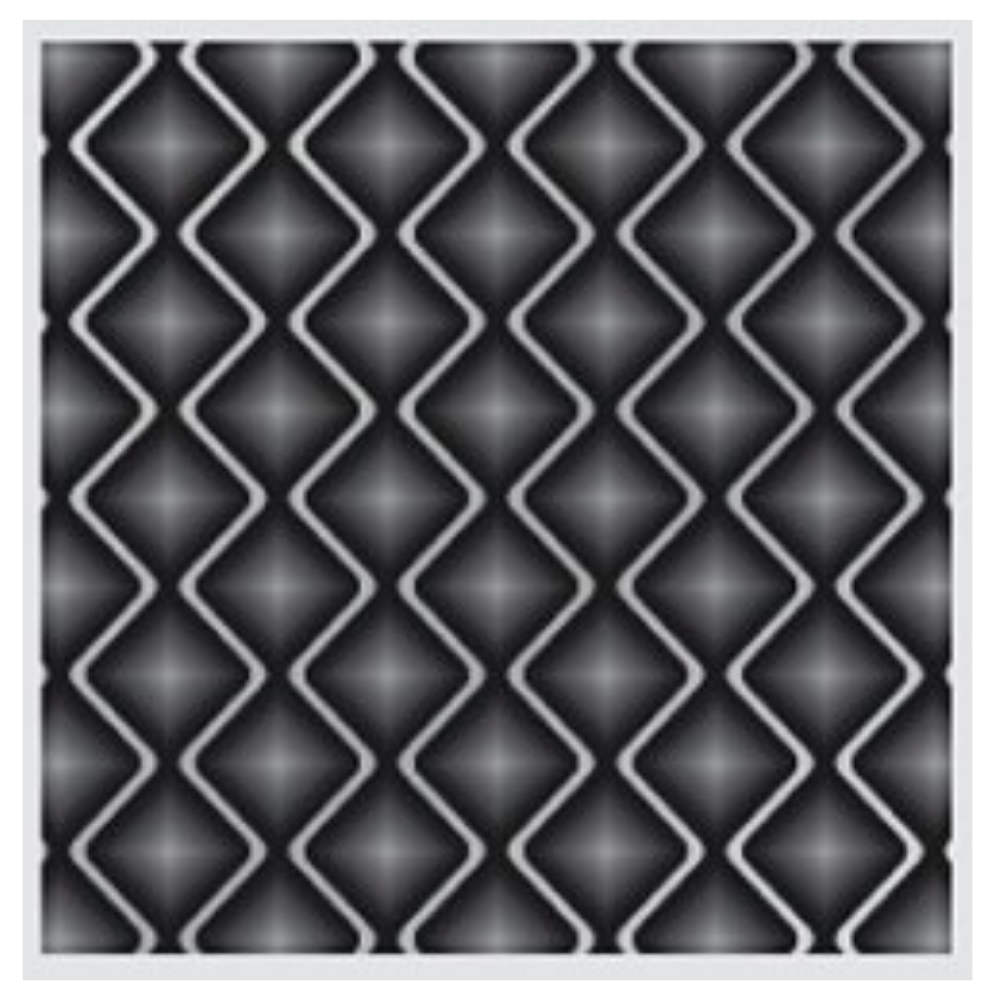

Engraving Cells

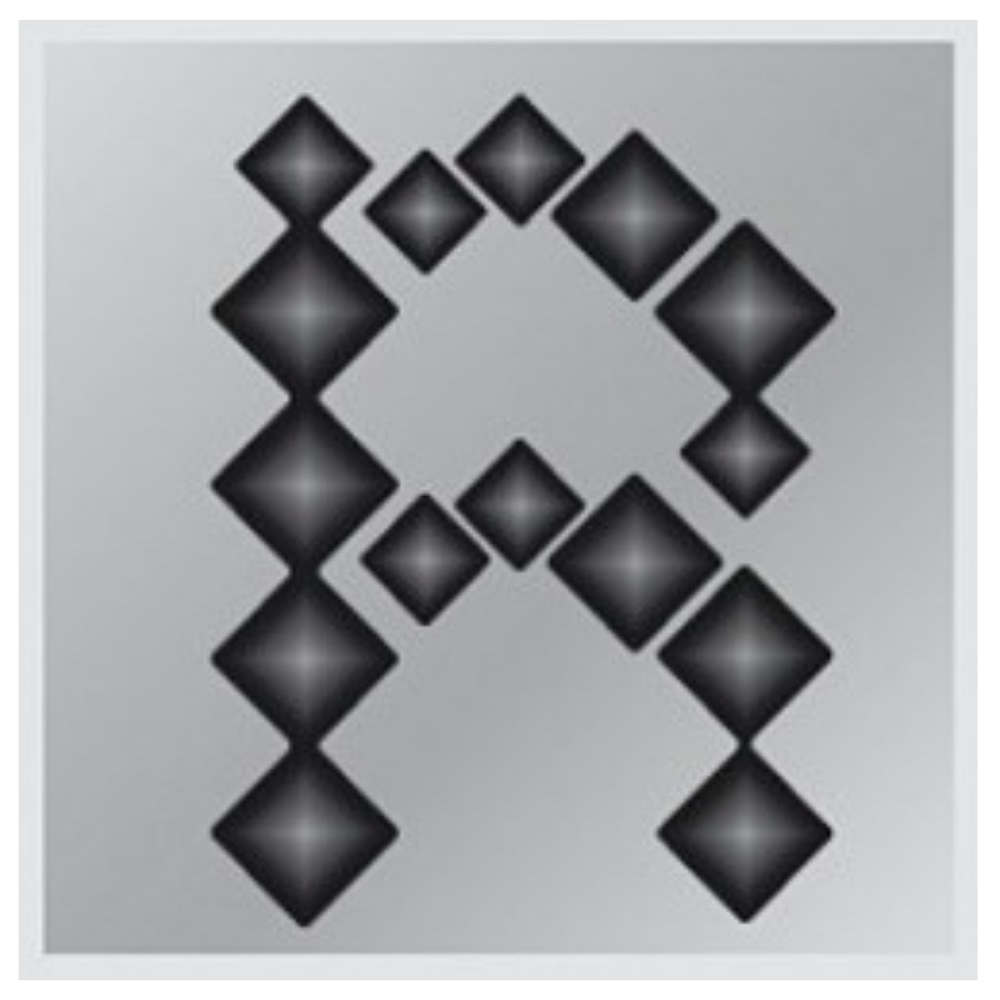

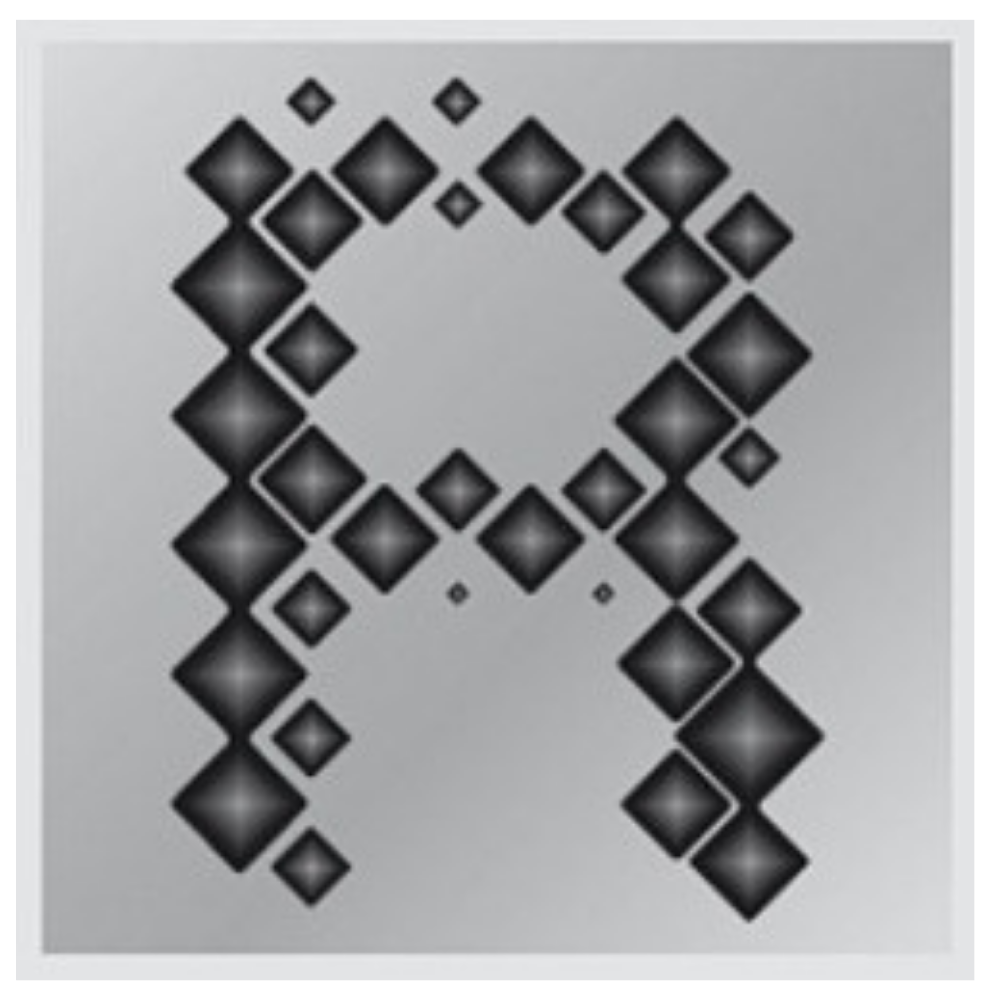

Small Texts Engraving
- Easy stylus changing
- Non image fast forward
- Easy tone curve manager for WYSWYG
- Auto values after first test cut.
- Easy and fast to operate
- No white line if circum is less.
Technical Parameters
| Specification | M–14 | M–20 |
| Engraving Head | German made | German made |
| Cylinder Circumference | 300 – 1400 mm | 300 – 1400 mm |
| Cylinder Length | 200 – 1400 mm | 200 – 2000 mm (Option up to 3200 mm) |
| Engraving Methods | Helical, Polar line | Helical, Polar line |
| Screen Angle | 0, 2, 3, 4 | 0, 2, 3, 4 |
| Engraving Speed | R60: 0.38 m²/h / R70: 0.32 m²/h | R60: 0.38 m²/h / R70: 0.32 m²/h |
| Engraving Range | 54–140 l/cm | 54–140 l/cm |
| Cell Depth Upto | 80 μm | 80 μm |
| Engraving Frequency | 4 kHz/Sec | 4 kHz/Sec |
| Non–image Area | Fast Forward | Fast Forward |
| Software & Interface | Windows 07/10 | Windows 07/10 |
| Stylus Support | 95° to 145° with wing | 95° to 145° with wing |
| Operation Temperature | 18 – 25 °C | 18 – 25 °C |
| Relative Humidity | 20 – 80%, No water condensation | 20 – 80%, No water condensation |
| Power Requirements | AC 220V Single Phase, 50/60 Hz | AC 220V Single Phase, 50/60 Hz |
| Current Consumption | 1.8 KVA min, 5 KVA max | 1.8 KVA min, 5 KVA max |
| Dimension (L×W×H) | 3500 × 1067 × 1524 mm | 3962 × 1067 × 1524 mm |
| Weight | 3000 kg approx. | 4000 kg approx. |
Optional Attachment
- Burr cutters
- Type B: 40-85 1/cm
- Art pro/ Planning software
- Screen angles: Freely definable
- Full body cover
